该是自己动手来写的时候了，最简单的代码能突出重点。
自己建个win32项目，选择空项目。
CMovie类来自于
Microsoft Platform SDK for Windows Server 2003 R2\Samples\Multimedia\DirectShow\VMR9\VMRPlayer\
中的vcdplyer.h，做了一点修改。
程序主体代码用了
Direct3D Tutorial 3: Using Matrices的部分代码。

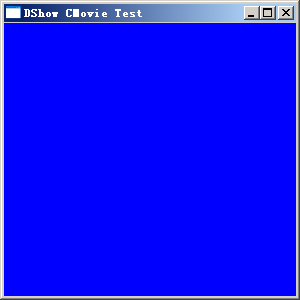

截图： 播放
不播放
项目配置：
#include <streams.h>
位于Microsoft Platform SDK for Windows Server 2003 R2\Samples\Multimedia\DirectShow\BaseClasses
链接：只有这三个d3d9.lib Strmiids.lib Quartz.lib
使用 Unicode 字符集
多线程调试 DLL (/MDd)核心代码：
INT WINAPI WinMain( HINSTANCE hInst, HINSTANCE, LPSTR, INT )
{
// Register the window class
WNDCLASSEX wc = { sizeof(WNDCLASSEX), CS_CLASSDC, MsgProc, 0L, 0L,
GetModuleHandle(NULL), NULL, NULL, NULL, NULL,
L"D3D Tutorial", NULL };
RegisterClassEx( &wc );
// Create the application's window
g_hwnd = CreateWindow( L"D3D Tutorial", L"DShow CMovie Test",
WS_OVERLAPPEDWINDOW, 100, 100, 300, 300,
NULL, NULL, wc.hInstance, NULL );
g_pMovie = new CMovie(g_hwnd);
g_pMovie->OpenMovie(L"C:\\Program Files\\Microsoft Platform SDK for Windows Server 2003 R2\\Samples\\Multimedia\\DirectShow\\Media\\Video\\ruby.avi");
g_pMovie->PlayMovie();
// Initialize Direct3D
if( SUCCEEDED( InitD3D( g_hwnd ) ) )
{
// Show the window
ShowWindow( g_hwnd, SW_SHOWDEFAULT );
UpdateWindow( g_hwnd );
// Enter the message loop
MSG msg;
ZeroMemory(&msg, sizeof(msg));
while(msg.message != WM_QUIT)
{
if( PeekMessage( &msg, NULL, 0, 0, PM_REMOVE ) )
{
TranslateMessage( &msg );
DispatchMessage( &msg );
}
else
{
Render();
}
}
}
UnregisterClass( L"D3D Tutorial", wc.hInstance );
return 0;
}
视频播放时d3d不渲染，不播放的时候才渲染
VOID Render()
{
if(g_pMovie->IsPlaying())
{
RECT rc;
::GetClientRect(g_hwnd, &rc);
g_pMovie->PutMoviePosition(rc.left, rc.top, rc.right - rc.left, rc.bottom - rc.top);
g_pMovie->RepaintVideo(g_hwnd, ::GetDC(g_hwnd));
}
else
{
if( NULL == g_pd3dDevice )
return;
// Clear the backbuffer to a blue color
g_pd3dDevice->Clear( 0, NULL, D3DCLEAR_TARGET, D3DCOLOR_XRGB(0,0,255), 1.0f, 0 );
// Begin the scene
if( SUCCEEDED( g_pd3dDevice->BeginScene() ) )
{
// Rendering of scene objects can happen here
// End the scene
g_pd3dDevice->EndScene();
}
// Present the backbuffer contents to the display
g_pd3dDevice->Present( NULL, NULL, NULL, NULL );
}
}
代码下载：
dshow.cmovie.rar
Reference:
DirectShow播放视频
