SdnfViewer - 3D Viewer for SDNF File

Posted on 2017-04-24 20:48 eryar 阅读(647) 评论(0)  编辑 收藏 引用 所属分类: 2.OpenCASCADE4.AVEVA Solution

SdnfViewer - 3D Viewer for SDNF File

eryar@163.com

SDNF(Structural steel Detailing Neutral File) format was originally defined by the Intergraph FrameWorks user community for the transfer of steel data. The format is in the public domain and is therefore available to be considered as a suitable means of transferring data between 3D steel detailing packages.

SdnfViewer is a 3D viewer for the SDNF file.

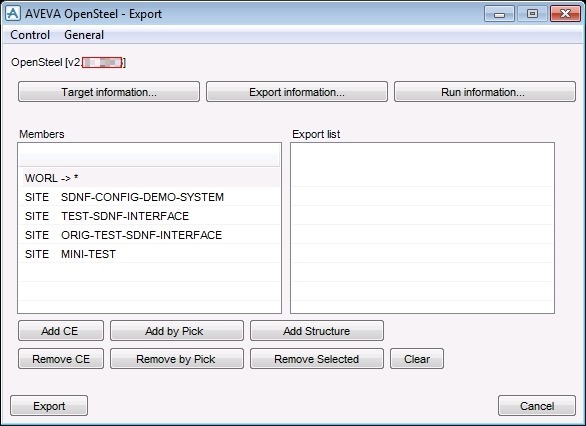

AVEVA OpenSteel is the interface for the PDMS module which allows the user to export and import files using the SDNF format.

wps74A5.tmp

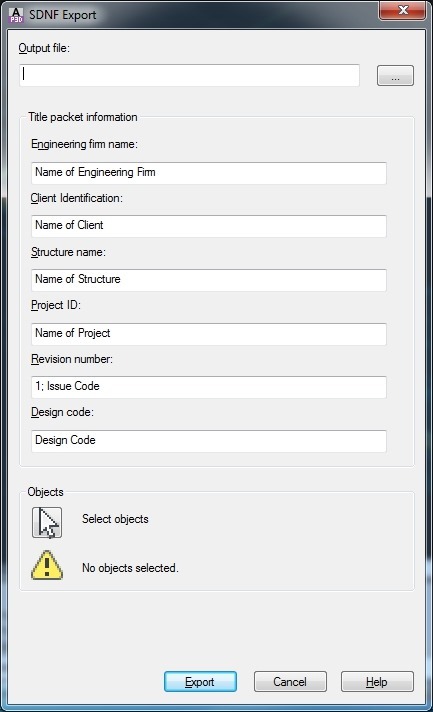

AutoCAD Plant3D use the command “SDNFEXPORT” to export SDNF:

wps74B6.tmp

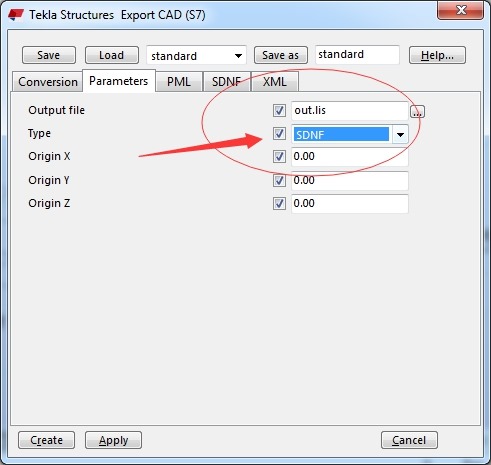

Tekla Structures use the Export CAD dialog to export  SDNF:

wps74C6.tmp

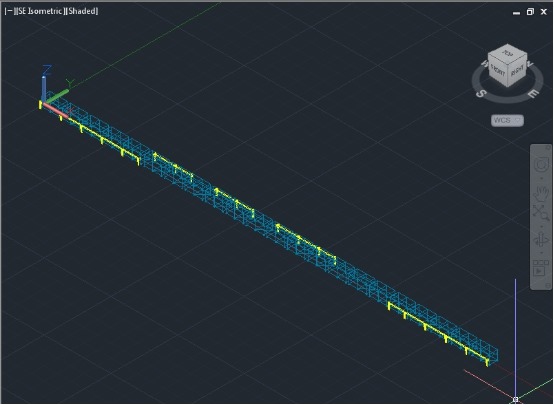

Structure Model in AutoCAD Plant3D:

wps74C7.tmp

wps74C8.tmp

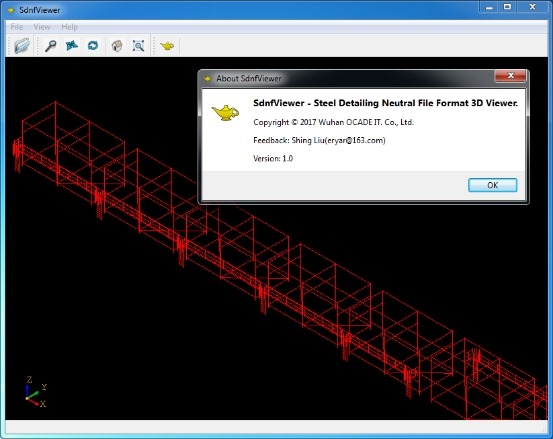

Use SdnfViewer to view the structure model by SDNF file. The SdnfViewer is under developing, if you have any questions, suggestions, you can send me email, my email address is: eryar@163.com.
