Make Helix Shape in occQt

Posted on 2016-06-05 13:44 eryar 阅读(929) 评论(2)  编辑 收藏 引用 所属分类: 2.OpenCASCADE

Make Helix Shape in occQt

PCurve is a powerful modeling method, to make helix shapes in occQt to help you understand pcurve better, then you can also can model some intereting shape based on pcurve.

OpenCASCADE does not provide helix curve directly, but you can build a helix curve by the pcurve of a surface(curve on surface). When you understand the pcurve of a surface, you can make a helix curve easily.

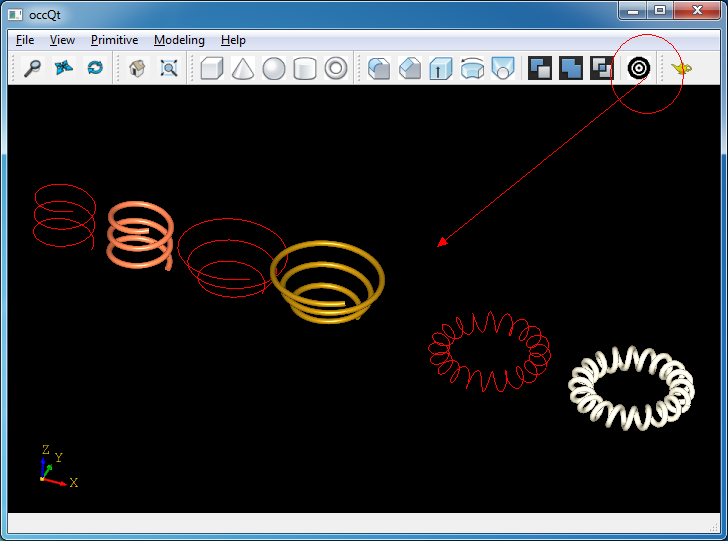

helix



References:

https://github.com/eryar/occQt/issues/11

http://www.cppblog.com/eryar/archive/2015/07/09/211212.html

http://www.cppblog.com/eryar/archive/2016/03/05/212931.html

Feedback

# re: Make Helix Shape in occQt  回复  更多评论

2016-06-07 08:39 by flydream0913
great! occQT是否有已编译好的可执行文件?

# re: Make Helix Shape in occQt  回复  更多评论

2016-06-07 19:33 by eryar
@flydream0913

本来准备上传到github上的,结果是上传不成功:
https://github.com/eryar/occQt/releases

还是上传到百度云上先用用看:
download from baidu cloud
