RvmTranslator Translate RVM to 3D PDF

Posted on 2016-03-19 14:34 eryar 阅读(1009) 评论(0)  编辑 收藏 引用 所属分类: 4.AVEVA Solution

RvmTranslator Translate RVM to 3D PDF

eryar@163.com

The Portable Document Format(PDF) is a file format used to present documents in a manner independent of application software, hardware, and operating system.

RVM file is used in AVEVA Review to visualize the plant design model. RvmTranslator can translate RVM file to STEP, IGES, STL, OBJ, now experiment to translate RVM model to 3D PDF inspired by Siddharth Manek:

http://www.cppblog.com/eryar/archive/2015/04/22/210424.html#212118

The following is the 3D PDF generated by RvmTranslator:

wps_clip_image-16837

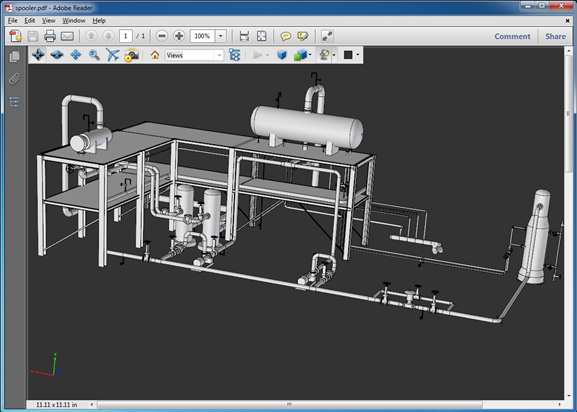

Download Spooler 3D PDF: Spooler 3D PDF

wps_clip_image-8363

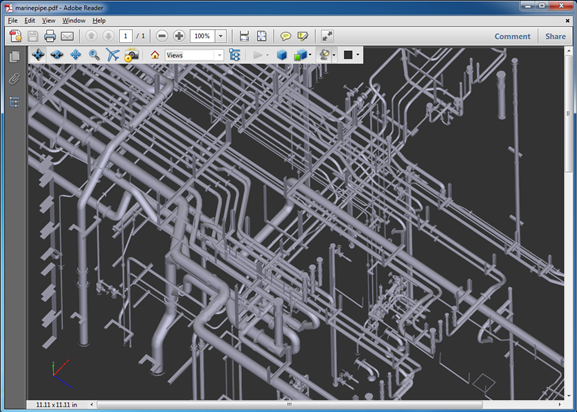

Download Marine Pipe 3D PDF: Marine Pipe 3D PDF

wps_clip_image-26010

Download CableTray 3D PDF: CableTray 3D PDF
