IsoAlgo Split Point

Posted on 2014-07-20 15:11 eryar 阅读(1956) 评论(4)  编辑 收藏 引用 所属分类: 1.PipeCAD

IsoAlgo Split Point

eryar@163.com



Abstract.

The impossibility to define the splitting point makes it impossible to generate

the readable isometrics drawing in some cases. If the drawing is so crowded

that can not read it clearly, it should add the split point to the drawing.



Key words. IsoAlgo, Isogen, Split Point,



1. Introduction

The impossibility to define the splitting point makes it impossible to generate the readable

isometrics drawing in some cases. If the drawing is so crowded that can not read it clearly,

it should add the split point to the drawing.

wps_clip_image-19735

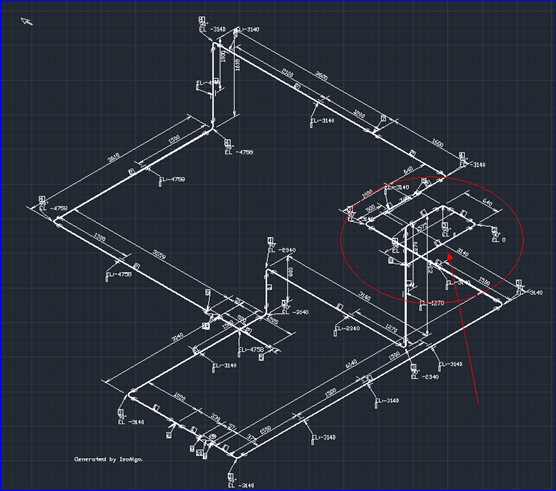

Figure 5.1 Crowded isometric drawing



2. Implementation

In PCF there is one identity to indicate the split point:

wps_clip_image-19820

Figure 5.2 Split Point info in PCF

After split the drawing at the crowed position, will generate more isometric drawings, but

they are more clearly than before. As the following picture shows that add two split points

automatically to get three isometric drawings. Every isometric drawing is more readable.

wps_clip_image-12445

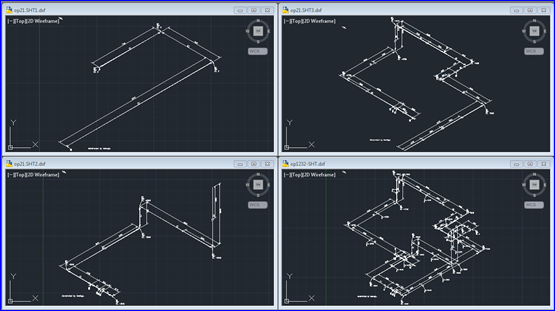

Figure 5.3 Split the isometric drawing

3. Conclusion

In order to improve the quality of the isometric drawing, need add split point for crowded

position to get more readable drawings.



IsoAlgo is not finish yet, any feedback or suggestion is welcome,

please send email to the author: IsoAlgo@gmail.com.



For more information about IsoAlgo, please visit:

http://code.google.com/p/isoalgo/
