IsoAlgo Export Symbol Template

Posted on 2014-06-11 21:31 eryar 阅读(1033) 评论(0)  编辑 收藏 引用 所属分类: 4.AVEVA Solution1.IsoAlgo

IsoAlgo Export Symbol Template


eryar@163.com

Key Words: IsoAlgo, Symbol Template

When you want to check the symbol templates that you defined in IsoAlgoSymbolTemplate.xml, you can give the command dumpsymbol to IsoAlgo, the usage is as follows:

wps_clip_image-2735

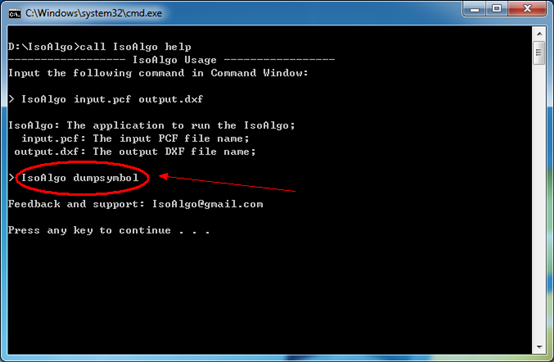

Figure 1 Export Symbol Template Command dumpsymbol

After the execution of the dumpsymbol command, IsoAlgo will generate IsoAlgoSymbolLib.dxf which contains all the symbol templates.

wps_clip_image-32696

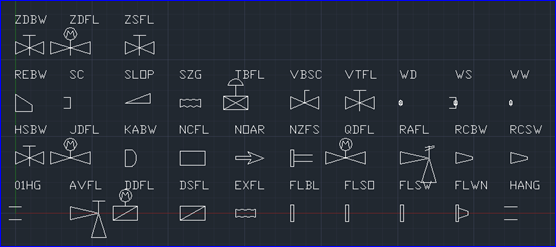

Figure 2 Symbol template in the IsoAlgoSymbolTemplate.xml

From the export symbol template you can make clear that how many symbol templates have beed definied, and It can help you to understand the symbol template definitation method.



IsoAlgo is not finish yet, any feedback or suggestion is welcome, please send email to the author: IsoAlgo@gmail.com.

For more information about IsoAlgo, please visit: http://code.google.com/p/isoalgo/
