IsoAlgo Material List Options

Posted on 2014-05-17 19:56 eryar 阅读(993) 评论(0)  编辑 收藏 引用 所属分类: 4.AVEVA Solution1.IsoAlgo

IsoAlgo Material List Options

eryar@163.com



1. Material List Options
IsoAlgo can produce a customised Material List. The Material List columns maybe selected from one attribute of the component.

You can specify the material list datum position on the drawing. The entries in the material list are numbered sequentially,

each entry contains the material’s description, nominal size, item code and quantity.

You can customize the material list by modify the IsoAlgoConfig.xml:

wps_clip_image-6813

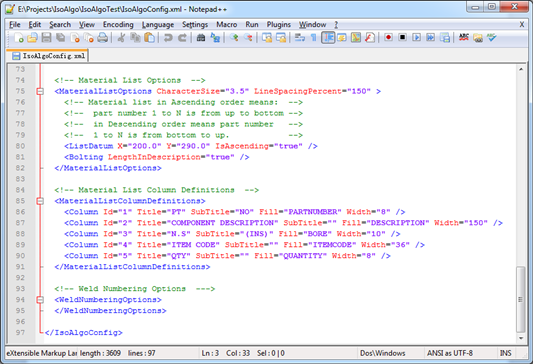

Figure 1 Material List Options in IsoAlgoConfig.xml

First, you specify the character size and the line spacing percent of the material list;

Second, specify the material list datum position on the drawing, modify the X and Y value for the ListDatum.

The IsAscending is used to control the material list direction. If the IsAscending is true,

the material list ‘s part number from 1 to N is from up to the bottom,

else the material list’s part number from 1 to N is from bottom to the up.

wps_clip_image-1402

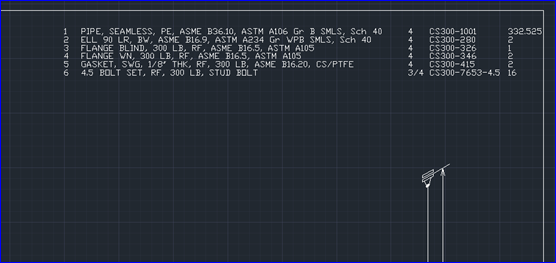

Figure 2 Material List with IsAscending is true

wps_clip_image-22754

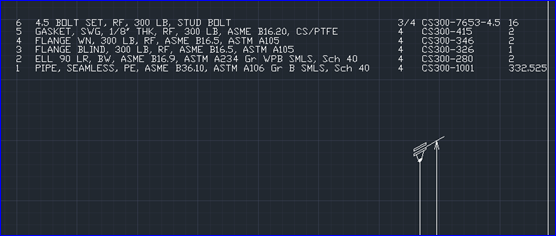

Figure 3 Material List with IsAscending is false

wps_clip_image-25567

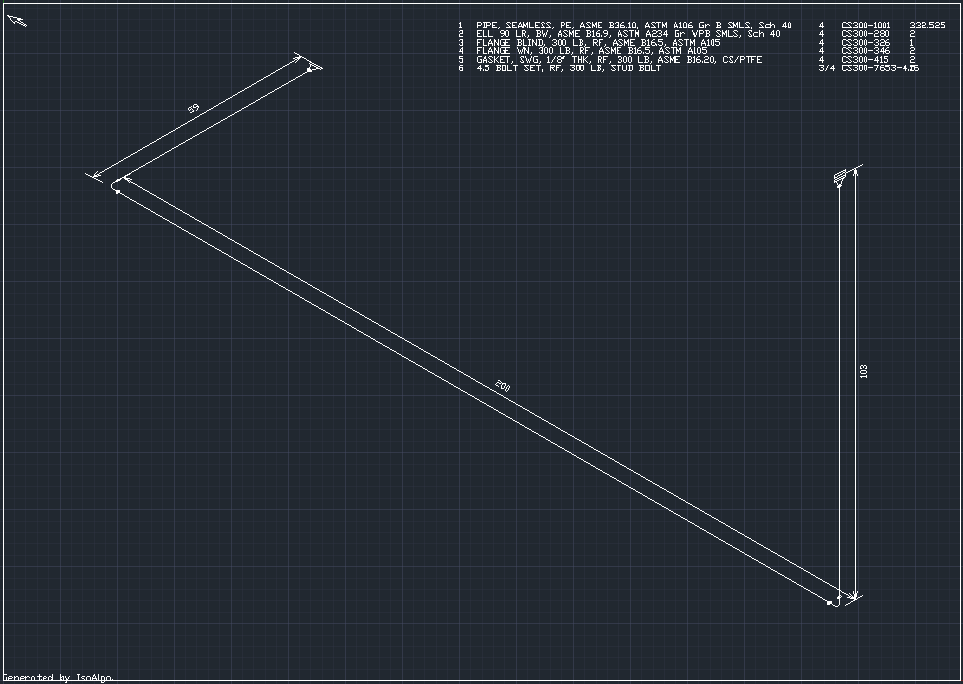

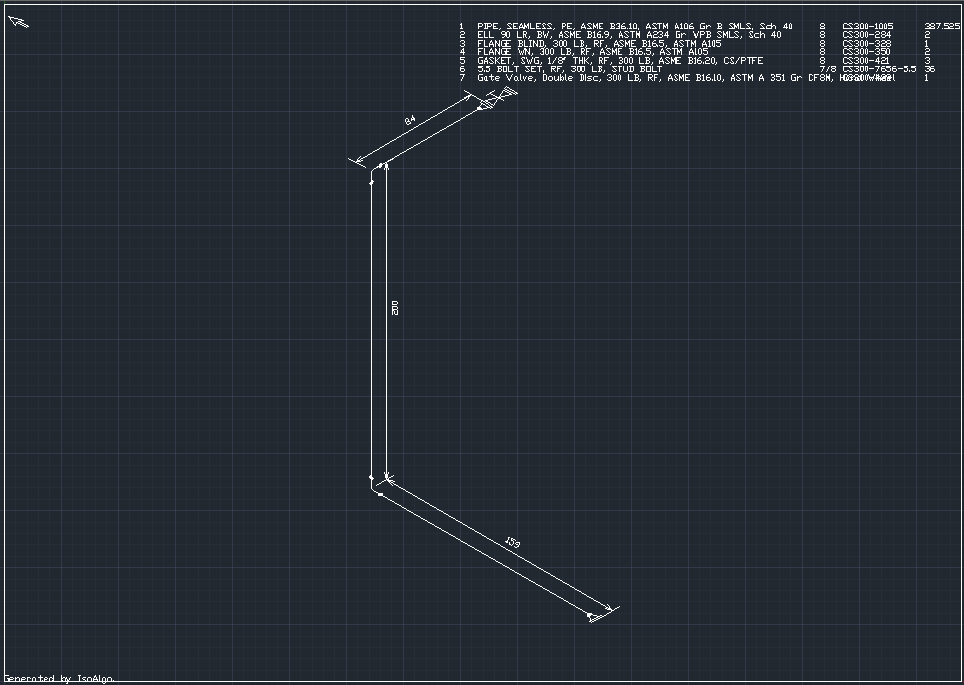

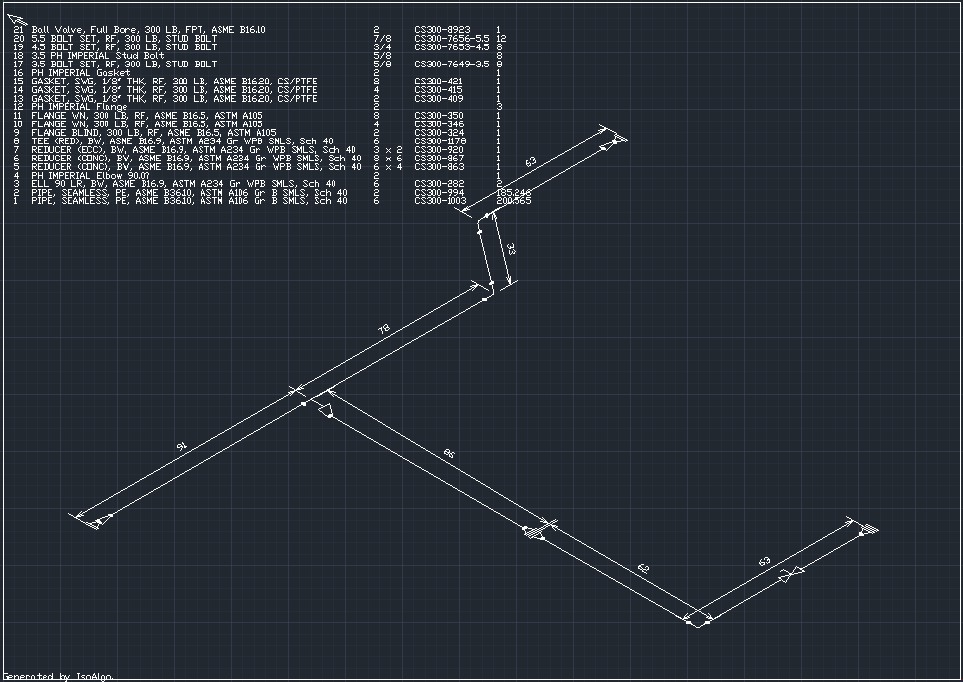

Figure 4 Isometric drawing with Material List


2. Material List Column Options

You can specify each column of the material list, the import attribute is Fill and Width.

The Fill is used to map the value for the material list and the Width is used to set the width of that column.

So you can decide the content of each column. For example, if you do not want the ITEMCODE column,

you can remove that column.

wps_clip_image-12218

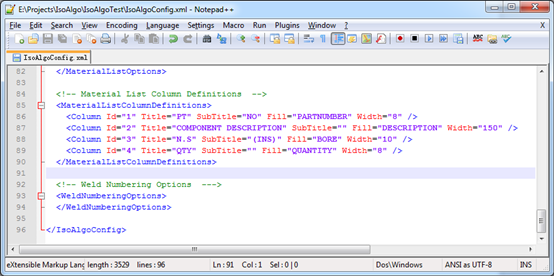

Figure 5 Material List Column Definitions

wps_clip_image-20577

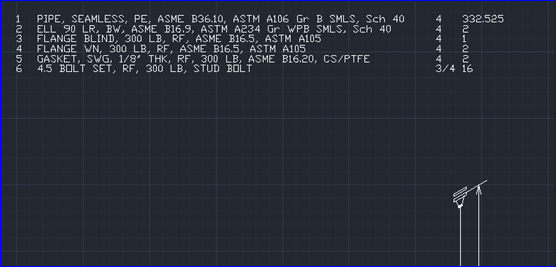

Figure 6  Material List Column Definitions Result
