#### Adjacency Matrix of the Graph

###### 一、邻接矩阵定义

l 邻接矩阵是一个对称矩阵；

l 若图G为无环图，则M(G)中第i行（列）的元素之和等于顶点的度数；

###### 二、图的邻接矩阵表示法的程序实现

`   1:  typedef struct SArc`
`   2:  {`
`   3:      double  dWeight;`
`   4:  }AdjMatrix[VERTEX_NUM][VERTEX_NUM];`
`   5:   `
`   6:  typedef struct SGraph`
`   7:  {`
`   8:      int         iVertexNum;`
`   9:      int         iArcNum;`
`  10:      int         aVertex[VERTEX_NUM];`
`  11:      AdjMatrix   mArcs;`
`  12:  }Graph;`
` `
.csharpcode, .csharpcode pre { font-size: small; color: black; font-family: consolas, "Courier New", courier, monospace; background-color: #ffffff; /*white-space: pre;*/ } .csharpcode pre { margin: 0em; } .csharpcode .rem { color: #008000; } .csharpcode .kwrd { color: #0000ff; } .csharpcode .str { color: #006080; } .csharpcode .op { color: #0000c0; } .csharpcode .preproc { color: #cc6633; } .csharpcode .asp { background-color: #ffff00; } .csharpcode .html { color: #800000; } .csharpcode .attr { color: #ff0000; } .csharpcode .alt { background-color: #f4f4f4; width: 100%; margin: 0em; } .csharpcode .lnum { color: #606060; }

`   1:  //------------------------------------------------------------------------------`
`   2:  //    Copyright (c) 2012 eryar All Rights Reserved.`
`   3:  //`
`   4:  //        File    : Main.cpp`
`   5:  //        Author  : eryar@163.com`
`   6:  //        Date    : 2012-4-11 20:33`
`   7:  //        Version : 1.0v`
`   8:  //`
`   9:  //    Description : Use adjacency matrix of a graph.`
`  10:  //`
`  11:  //==============================================================================`
`  12:   `
`  13:  #include <IOSTREAM>`
`  14:  using namespace std;`
`  15:   `
`  16:  const int INFINIY       = INT_MAX;`
`  17:  const int VERTEX_NUM    = 20;`
`  18:   `
`  19:  typedef struct SArc`
`  20:  {`
`  21:      double  dWeight;`
`  22:  }AdjMatrix[VERTEX_NUM][VERTEX_NUM];`
`  23:   `
`  24:  typedef struct SGraph`
`  25:  {`
`  26:      int         iVertexNum;`
`  27:      int         iArcNum;`
`  28:      int         aVertex[VERTEX_NUM];`
`  29:      AdjMatrix   mArcs;`
`  30:  }Graph;`
`  31:   `
`  32:  void    CreateGraph(Graph& graph);`
`  33:  int     LocateVertex(const Graph& graph, int vertex);`
`  34:  void    ShowGraph(const Graph& graph);`
`  35:   `
`  36:  ///////////////////////////////////////////////////////////////////////////////`
`  37:  // Main function.`
`  38:   `
`  39:  int main(int argc, char* argv[])`
`  40:  {`
`  41:      Graph   graph;`
`  42:   `
`  43:      CreateGraph(graph);`
`  44:   `
`  45:      ShowGraph(graph);`
`  46:   `
`  47:      return 0;`
`  48:  }`
`  49:   `
`  50:  ///////////////////////////////////////////////////////////////////////////////`
`  51:  /*`
`  52:  * Create a graph.`
`  53:  */`
`  54:  void    CreateGraph(Graph& graph)`
`  55:  {`
`  56:      cout<<"Create the graph"<<endl;`
`  57:      cout<<"Input vertex number:"; `
`  58:      cin>>graph.iVertexNum;`
`  59:   `
`  60:      cout<<"Input arc number:";`
`  61:      cin>>graph.iArcNum;`
`  62:   `
`  63:      // Input vertex`
`  64:      for (int iVertex = 0; iVertex < graph.iVertexNum; iVertex++)`
`  65:      {`
`  66:          cout<<"Input "<<iVertex+1<<" vertex value:";`
`  67:          cin>>graph.aVertex[iVertex];`
`  68:      }`
`  69:   `
`  70:      // Initialize adjacency matrix.`
`  71:      for (int i = 0; i < graph.iVertexNum; i++)`
`  72:      {`
`  73:          for (int j = 0; j < graph.iVertexNum; j++)`
`  74:          {`
`  75:              graph.mArcs[i][j].dWeight   = 0;`
`  76:          }`
`  77:      }`
`  78:   `
`  79:      // Build adjacency matrix.`
`  80:      int     iFirst  = 0;`
`  81:      int     iSecond = 0;`
`  82:      int     xPos    = 0;`
`  83:      int     yPos    = 0;`
`  84:      double  dWeight = 0;`
`  85:   `
`  86:      for (int k = 0; k < graph.iArcNum; k++)`
`  87:      {`
`  88:          cout<<"Input edge first vertex:";`
`  89:          cin>>iFirst;`
`  90:   `
`  91:          cout<<"Input edge second vertex:";`
`  92:          cin>>iSecond;`
`  93:   `
`  94:          cout<<"Input the weight:";`
`  95:          cin>>dWeight;`
`  96:   `
`  97:          xPos  = LocateVertex(graph, iFirst);`
`  98:          yPos  = LocateVertex(graph, iSecond);`
`  99:   `
` 100:          // `
` 101:          graph.mArcs[xPos][yPos].dWeight = dWeight;`
` 102:          graph.mArcs[yPos][xPos].dWeight = dWeight;`
` 103:      }`
` 104:  }`
` 105:   `
` 106:  /**`
` 107:  * Show a graph.`
` 108:  */`

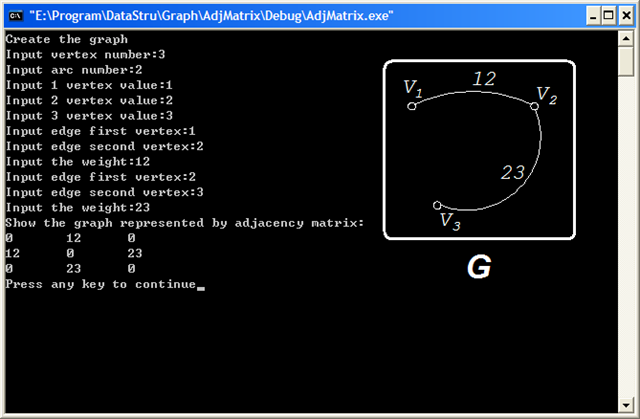

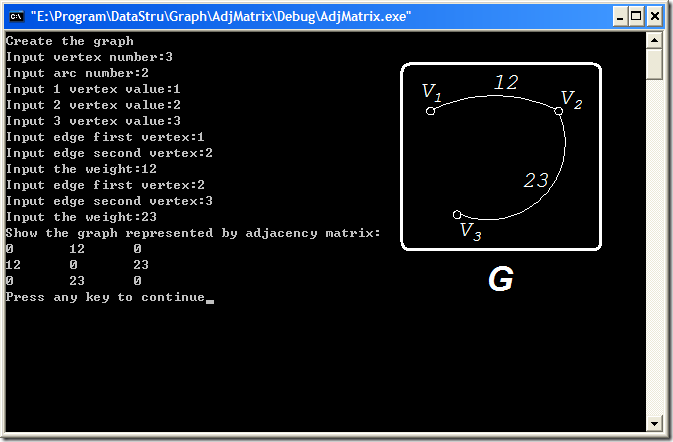

` 109:  void    ShowGraph(const Graph& graph)`
` 110:  {`
` 111:      cout<<"Show the graph represented by adjacency matrix:"<<endl;`
` 112:   `
` 113:      // Output adjacency matrix.`
` 114:      for (int m = 0; m < graph.iVertexNum; m++)`
` 115:      {`
` 116:          for (int n = 0; n < graph.iVertexNum; n++)`
` 117:          {`
` 118:              cout<<graph.mArcs[m][n].dWeight<<"\t";`
` 119:          }`
` 120:   `
` 121:          cout<<endl;`
` 122:      }`
` 123:  }`
` 124:   `
` 125:  /**`
` 126:  * Locate vertex position in the adjacency matrix.`
` 127:  */`
` 128:  int LocateVertex( const Graph& graph, int vertex )`
` 129:  {`
` 130:      for (int i = 0; i < graph.iVertexNum; i++)`
` 131:      {`
` 132:          if (graph.aVertex[i] == vertex)`
` 133:          {`
` 134:              return i;`
` 135:          }`
` 136:      }`
` 137:   `
` 138:      return -1;`
` 139:  }`
