1、NameNode启动加载元数据情景分析
  • NameNode函数里调用FSNamesystemm读取dfs.namenode.name.dir和dfs.namenode.edits.dir构建FSDirectory。
  • FSImage类recoverTransitionRead和saveNameSpace分别实现了元数据的检查、加载、内存合并和元数据的持久化存储。
  • saveNameSpace将元数据写入到磁盘,具体操作步骤:首先将current目录重命名为lastcheckpoint.tmp;然后在创建新的current目录,并保存文件;最后将lastcheckpoint.tmp重命名为privios.checkpoint.
  • checkPoint的过程:Secondary NameNode会通知nameNode产生一个edit log文件edits.new,之后所有的日志操作写入到edits.new文件中。接下来Secondary NameNode会从namenode下载fsimage和edits文件,进行合并产生新的fsimage.ckpt;然后Secondary会将fsimage.ckpt文件上传到namenode。最后namenode会重命名fsimage.ckpt为fsimage,edtis.new为edits;
2、元数据更新及日志写入情景分析
以mkdir为例:

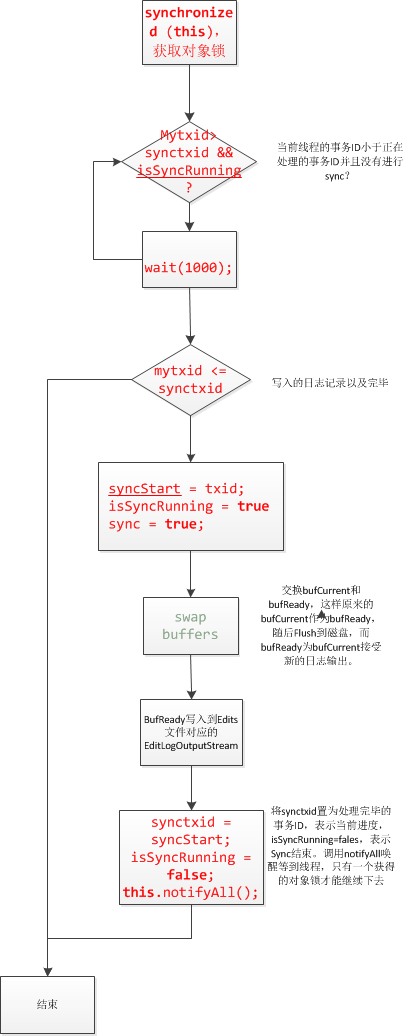

logSync代码分析:
代码:
  1. public void logSync () throws IOException {
  2. ArrayList<EditLogOutputStream > errorStreams = null ;
  3. long syncStart = 0;
  4.
  5. // Fetch the transactionId of this thread.
  6. long mytxid = myTransactionId .get (). txid;
  7. EditLogOutputStream streams[] = null;
  8. boolean sync = false;
  9. try {
  10. synchronized (this) {
  11. assert editStreams. size() > 0 : "no editlog streams" ;
  12. printStatistics (false);
  13. // if somebody is already syncing, then wait
  14. while (mytxid > synctxid && isSyncRunning) {
  15. try {
  16. wait (1000 );
  17. catch (InterruptedException ie ) {
  18. }
  19. }
  20. //
  21. // If this transaction was already flushed, then nothing to do
  22. //
  23. if (mytxid <= synctxid ) {
  24. numTransactionsBatchedInSync ++;
  25. if (metrics != null// Metrics is non-null only when used inside name node
  26. metrics .transactionsBatchedInSync .inc ();
  27. return;
  28. }
  29. // now, this thread will do the sync
  30. syncStart = txid ;
  31. isSyncRunning = true;
  32. sync = true;
  33. // swap buffers
  34. for( EditLogOutputStream eStream : editStreams ) {
  35. eStream .setReadyToFlush ();
  36. }
  37. streams =
  38. editStreams .toArray (new EditLogOutputStream[editStreams. size()]) ;
  39. }
  40. // do the sync
  41. long start = FSNamesystem.now();
  42. for (int idx = 0; idx < streams. length; idx++ ) {
  43. EditLogOutputStream eStream = streams [idx ];
  44. try {
  45. eStream .flush ();
  46. catch (IOException ie ) {
  47. FSNamesystem .LOG .error ("Unable to sync edit log." , ie );
  48. //
  49. // remember the streams that encountered an error.
  50. //
  51. if (errorStreams == null) {
  52. errorStreams = new ArrayList <EditLogOutputStream >( 1) ;
  53. }
  54. errorStreams .add (eStream );
  55. }
  56. }
  57. long elapsed = FSNamesystem.now() - start ;
  58. processIOError (errorStreams , true);
  59. if (metrics != null// Metrics non-null only when used inside name node
  60. metrics .syncs .inc (elapsed );
  61. finally {
  62. synchronized (this) {
  63. synctxid = syncStart ;
  64. if (sync ) {
  65. isSyncRunning = false;
  66. }
  67. this.notifyAll ();
  68. }
  69. }
  70. }

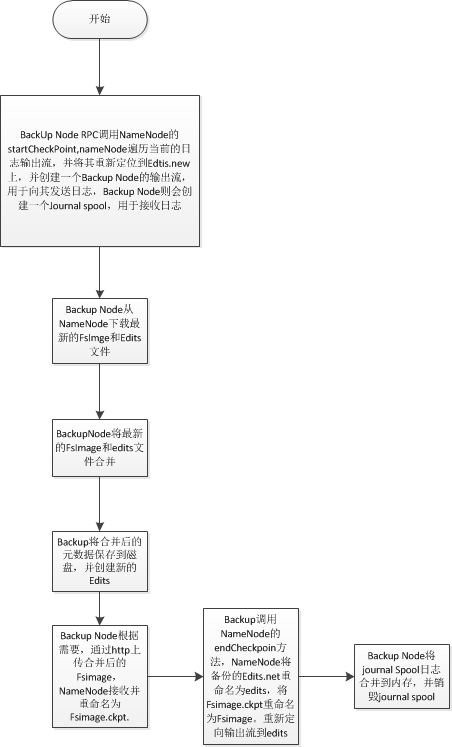

3、Backup Node 的checkpoint的过程分析:
  1. /**
  2. * Create a new checkpoint
  3. */
  4. void doCheckpoint() throws IOException {
  5. long startTime = FSNamesystem.now ();
  6. NamenodeCommand cmd =
  7. getNamenode().startCheckpoint( backupNode. getRegistration());
  8. CheckpointCommand cpCmd = null;
  9. switch( cmd. getAction()) {
  10. case NamenodeProtocol .ACT_SHUTDOWN :
  11. shutdown() ;
  12. throw new IOException ("Name-node " + backupNode .nnRpcAddress
  13. " requested shutdown.");
  14. case NamenodeProtocol .ACT_CHECKPOINT :
  15. cpCmd = (CheckpointCommand )cmd ;
  16. break;
  17. default:
  18. throw new IOException ("Unsupported NamenodeCommand: "+cmd.getAction()) ;
  19. }
  20.
  21. CheckpointSignature sig = cpCmd. getSignature();
  22. assert FSConstants.LAYOUT_VERSION == sig .getLayoutVersion () :
  23. "Signature should have current layout version. Expected: "
  24. + FSConstants.LAYOUT_VERSION + " actual " + sig. getLayoutVersion();
  25. assert !backupNode .isRole (NamenodeRole .CHECKPOINT ) ||
  26. cpCmd. isImageObsolete() : "checkpoint node should always download image.";
  27. backupNode. setCheckpointState(CheckpointStates .UPLOAD_START );
  28. if( cpCmd. isImageObsolete()) {
  29. // First reset storage on disk and memory state
  30. backupNode. resetNamespace();
  31. downloadCheckpoint(sig);
  32. }
  33.
  34. BackupStorage bnImage = getFSImage() ;
  35. bnImage. loadCheckpoint(sig);
  36. sig.validateStorageInfo( bnImage) ;
  37. bnImage. saveCheckpoint();
  38.
  39. if( cpCmd. needToReturnImage())
  40. uploadCheckpoint(sig);
  41.
  42. getNamenode() .endCheckpoint (backupNode .getRegistration (), sig );
  43.
  44. bnImage. convergeJournalSpool();
  45. backupNode. setRegistration(); // keep registration up to date
  46. if( backupNode. isRole( NamenodeRole.CHECKPOINT ))
  47. getFSImage() .getEditLog (). close() ;
  48. LOG. info( "Checkpoint completed in "
  49. + (FSNamesystem .now() - startTime )/ 1000 + " seconds."
  50. " New Image Size: " + bnImage .getFsImageName (). length()) ;
  51. }
  52. }

4、元数据可靠性机制。
  • 配置多个备份路径。NameNode在更新日志或进行Checkpoint的过程,会将元数据放在多个目录下。
  • 对于没一个需要保存的元数据文件,都创建一个输出流,对访问过程中出现的异常输出流进行处理,将其移除。并再合适的时机再次检查移除的数据量是否恢复正常。有效的保证了备份输出流的异常问题。
  • 采用了多种机制来保证元数据的可靠性。例如在checkpoint的过程中,分为几个阶段,通过不同的文件名来标识当前所处的状态。为存储失败后进行恢复提供了可能。
5、元数据的一致性机制。
  • 首先从NameNode启动时,对每个备份目录是否格式化、目录元数据文件名是否正确等进行检查,确保元数据文件间的状态一致性,然后选取最新的加载到内存,这样可以确保HDFS当前状态和最后一次关闭时的状态一致性。
  • 其次,通过异常输出流的处理,可以确保正常输出流数据的一致性。
  • 运用同步机制,确保了输出流一致性问题。

    本文转自:
    http://blog.csdn.net/kntao/article/details/7770597
