Specular Lighting (Direct3D 9)
Modeling specular reflection requires that the system not only know in what
direction light is traveling, but also the direction to the viewer's eye. The
system uses a simplified version of the Phong specular-reflection model, which
employs a halfway vector to approximate the intensity of specular reflection.
The default lighting state does not calculate specular highlights. To enable
specular lighting, be sure to set D3DRS_SPECULARENABLE to TRUE.
Specular Lighting Equation
Specular Lighting is described by the following equation.
Specular Lighting = Cs * sum[Ls
* (N • H)P * Atten * Spot] |
The following table identifies the variables, their types, and their ranges.
Parameter |
Default value |
Type |
Description |
Cs |
(0,0,0,0) |
D3DCOLORVALUE |
Specular color. |
sum |
N/A |
N/A |
Summation of each light's specular component. |
N |
N/A |
D3DVECTOR |
Vertex normal. |
H |
N/A |
D3DVECTOR |
Half way vector. See the section on the halfway vector. |
P |
0.0 |
FLOAT |
Specular reflection power. Range is 0 to +infinity |
Ls |
(0,0,0,0) |
D3DCOLORVALUE |
Light specular color. |
Atten |
N/A |
FLOAT |
Light attenuation value. See Attenuation and Spotlight Factor
(Direct3D 9). |
Spot |
N/A |
FLOAT |
Spotlight factor. See Attenuation and Spotlight Factor (Direct3D
9). |
The value for Cs is either:
if(SPECULARMATERIALSOURCE == D3DMCS_COLOR1)
C = color1;
- vertex color1, if the specular material source is D3DMCS_COLOR1, and the
first vertex color is supplied in the vertex declaration.
- vertex color2, if specular material source is D3DMCS_COLOR2, and the
second vertex color is supplied in the vertex declaration.
- material specular color
Note If either specular material source option
is used and the vertex color is not provided, then the material specular color
is used.
Specular components are clamped to be from 0 to 255, after all lights are
processed and interpolated separately.
The Halfway Vector
The halfway vector (H) exists midway between two vectors: the vector from an
object vertex to the light source, and the vector from an object vertex to the
camera position. Direct3D provides two ways to compute the halfway vector. When
D3DRS_LOCALVIEWER is set to TRUE, the system calculates the halfway vector using
the position of the camera and the position of the vertex, along with the
light's direction vector. The following formula illustrates this.
H = norm(norm(Cp - Vp) +
Ldir) |
Parameter |
Default value |
Type |
Description |
Cp |
N/A |
D3DVECTOR |
Camera position. |
Vp |
N/A |
D3DVECTOR |
Vertex position. |
Ldir |
N/A |
D3DVECTOR |
Direction vector from vertex position to the light position. |
Determining the halfway vector in this manner can be computationally
intensive. As an alternative, setting D3DRS_LOCALVIEWER = FALSE instructs the
system to act as though the viewpoint is infinitely distant on the z-axis. This
is reflected in the following formula.
This setting is less computationally intensive, but much less accurate, so it
is best used by applications that use orthogonal projection.
Example
In this example, the object is colored using the scene specular light color
and a material specular color. The code is shown below.
D3DLIGHT9 light;
ZeroMemory( &light, sizeof(light) );
light.Type = D3DLIGHT_DIRECTIONAL;
D3DXVECTOR3 vecDir;
vecDir = D3DXVECTOR3(0.5f, 0.0f, -0.5f);
D3DXVec3Normalize( (D3DXVECTOR3*)&light.Direction, &vecDir );
light.Specular.r = 1.0f;
light.Specular.g = 1.0f;
light.Specular.b = 1.0f;
light.Specular.a = 1.0f;
light.Range = 1000;
light.Falloff = 0;
light.Attenuation0 = 1;
light.Attenuation1 = 0;
light.Attenuation2 = 0;
m_pd3dDevice->SetLight( 0, &light );
m_pd3dDevice->LightEnable( 0, TRUE );
m_pd3dDevice->SetRenderState( D3DRS_SPECULARENABLE, TRUE );
D3DMATERIAL9 mtrl;
ZeroMemory( &mtrl, sizeof(mtrl) );
mtrl.Specular.r = 0.5f;
mtrl.Specular.g = 0.5f;
mtrl.Specular.b = 0.5f;
mtrl.Specular.a = 0.5f;
mtrl.Power = 20;
m_pd3dDevice->SetMaterial( &mtrl );
m_pd3dDevice->SetRenderState(D3DRS_SPECULARMATERIALSOURCE, D3DMCS_MATERIAL);
According to the equation, the resulting color for the object vertices is a
combination of the material color and the light color.

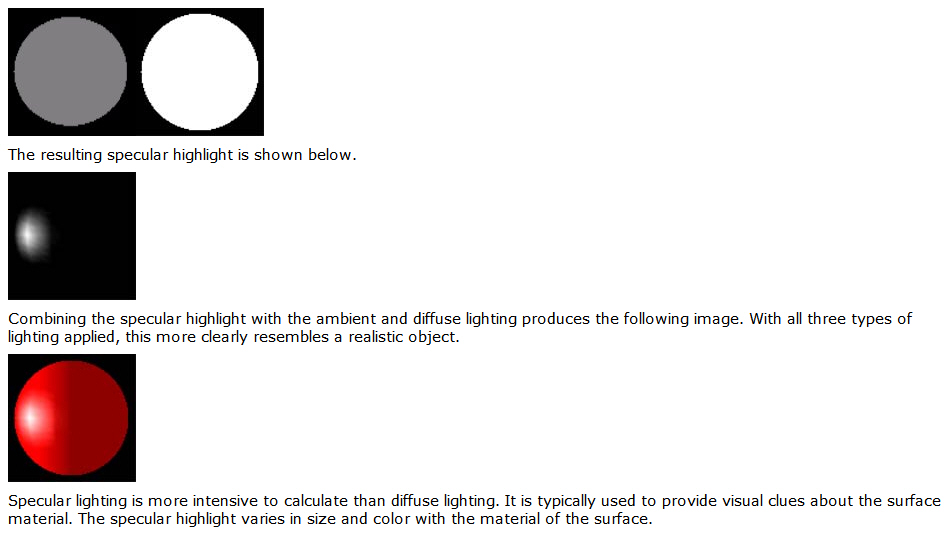

These two images show the specular material color, which is gray, and the
specular light color, which is white.
