模式设计c#--行为型--mediator

名称 Mediator

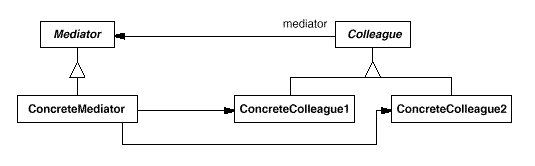

结构 o_mediator.bmp
意图 用一个中介对象来封装一系列的对象交互。中介者使各对象不需要显式地相互引用,从而使其耦合松散,而且可以独立地改变它们之间的交互。
适用性
  • 一组对象以定义良好但是复杂的方式进行通信。产生的相互依赖关系结构混乱且难以理解。
  • 一个对象引用其他很多对象并且直接与这些对象通信,导致难以复用该对象。
  • 想定制一个分布在多个类中的行为,而又不想生成太多的子类。


namespace  Mediator_DesignPattern
{

using  System;


class  Mediator

{

private  DataProviderColleague dataProvider;

private  DataConsumerColleague dataConsumer;

public   void  IntroduceColleagues(DataProviderColleague c1, DataConsumerColleague c2)

{
            dataProvider
=  c1;
            dataConsumer
=  c2;
        }



public   void  DataChanged()

{

int  i  =  dataProvider.MyData;
            dataConsumer.NewValue(i);
        }

    }



class  DataConsumerColleague

{

public   void  NewValue( int  i)

{
            Console.WriteLine(
" New value {0} " , i);
        }

    }



class  DataProviderColleague

{

private  Mediator mediator;

private   int  iMyData = 0 ;

public   int  MyData

{

get

{

return  iMyData;
            }


set

{
                iMyData
=  value;
            }

        }


public  DataProviderColleague(Mediator m)

{
            mediator
=  m;
        }



public   void  ChangeData()

{
            iMyData
=   403 ;


//  Inform mediator that I have changed the data
             if  (mediator  !=   null )
                mediator.DataChanged();
        }

    }



///   <summary>

///     Summary description for Client.

///   </summary>

     public   class  Client

{

public   static   int  Main( string [] args)

{
            Mediator m
=   new  Mediator();
            DataProviderColleague c1
=   new  DataProviderColleague(m);
            DataConsumerColleague c2
=   new  DataConsumerColleague();
            m.IntroduceColleagues(c1,c2);

            c1.ChangeData();


return   0 ;
        }

    }

}

很好的例子:聊天室:

// Mediator pattern -- Real World example


using System;
using System.Collections;

namespace DoFactory.GangOfFour.Mediator.RealWorld
{


// MainApp test application


class MainApp

{

static void Main()

{

// Create chatroom
      Chatroom chatroom = new Chatroom();


// Create participants and register them
      Participant George = new Beatle("George");
      Participant Paul
= new Beatle("Paul");
      Participant Ringo
= new Beatle("Ringo");
      Participant John
= new Beatle("John") ;
      Participant Yoko
= new NonBeatle("Yoko");

      chatroom.Register(George);
      chatroom.Register(Paul);
      chatroom.Register(Ringo);
      chatroom.Register(John);
      chatroom.Register(Yoko);


// Chatting participants
      Yoko.Send ("John""Hi John!");
      Paul.Send (
"Ringo""All you need is love");
      Ringo.Send(
"George""My sweet Lord");
      Paul.Send (
"John""Can't buy me love");
      John.Send (
"Yoko""My sweet love") ;


// Wait for user
      Console.Read();
    }

  }



// "Mediator"


abstract class AbstractChatroom

{

public abstract void Register(Participant participant);

public abstract void Send(

string from, string to, string message);
  }



// "ConcreteMediator"


class Chatroom : AbstractChatroom

{

private Hashtable participants = new Hashtable();


public override void Register(Participant participant)

{

if (participants[participant.Name] == null)

{
        participants[participant.Name]
= participant;
      }


      participant.Chatroom
= this;
    }



public override void Send(

string from, string to, string message)

{
      Participant pto
= (Participant)participants[to];

if (pto != null)

{
        pto.Receive(from, message);
      }

    }

  }



// "AbstractColleague"


class Participant

{

private Chatroom chatroom;

private string name;


// Constructor
    public Participant(string name)

{

this.name = name;
    }



// Properties
    public string Name

{

getreturn name; }
    }



public Chatroom Chatroom

{

set{ chatroom = value; }

getreturn chatroom; }
    }



public void Send(string to, string message)

{
      chatroom.Send(name, to, message);
    }



public virtual void Receive(

string from, string message)

{
      Console.WriteLine(
"{0} to {1}: '{2}'",
        from, Name, message);
    }

  }



//" ConcreteColleague1"


class Beatle : Participant

{

// Constructor
    public Beatle(string name) : base(name)


    }



public override void Receive(string from, string message)

{
      Console.Write(
"To a Beatle: ");

base.Receive(from, message);
    }

  }



//" ConcreteColleague2"


class NonBeatle : Participant

{

// Constructor
    public NonBeatle(string name) : base(name)


    }



public override void Receive(string from, string message)

{
      Console.Write(
"To a non-Beatle: ");

base.Receive(from, message);
    }

  }

}



posted on 2006-01-03 16:10 梦在天涯 阅读(699) 评论(0)  编辑 收藏 引用 所属分类: Design pattern
